Bar End Heating

Pillar supplies optimum solutions for induction bar end heaters for a wide variety of production rates, sizes, shapes, metallurgical make-up and heated lengths. Our engineering experience includes many applications, satisfying both customer production requirements and the need to increase manufacturing efficiencies.

The handling of bars varies in complexity from manual systems to fully integrated cells.

Oval Coil Design - Multiple bar ends can be heated in an oval style, multi-turn coil either manually fed or with automation.

Solenoid Coil Design - Single bars are fed either manually or with automation into a solenoid style coil.

Channel Coil Design - Bars are continuously fed on a conveyor with the end of the bar to be heated passing through channel coil.



« Back

Bar End Heating

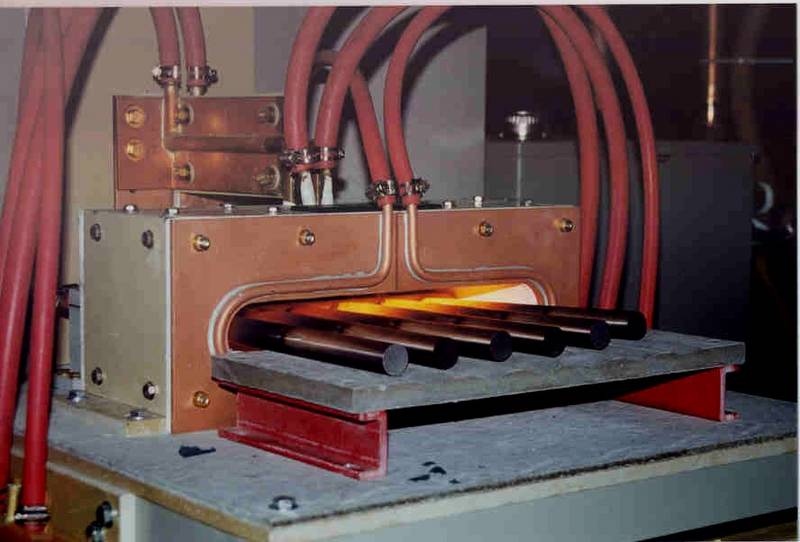

Bar End Heating Oval Coil

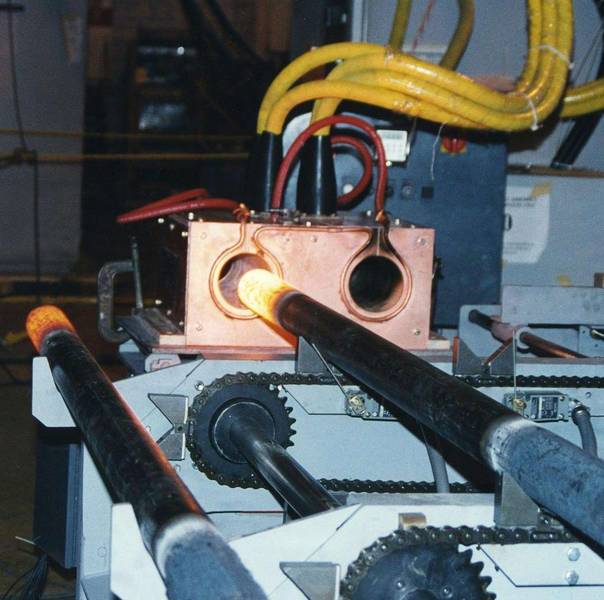

Bar end heating solenoid
Bar End Heating Solenoid Coil

Channel Coil
Channel Coil
